Colossus class (1944)

United Kingdom - 1942 Design Light Fleet Carrier (1944)
HMS Colossus, Glory, Ocean, Venerable, Vengeance, Pioneer, Warrior, Theseus, Triumph, Perseus
Majestic, Terrible, Magnificent, Hercules, Powerful

The 1942 light fleet carrier program

The Colossus class also called 1942 Design Light Fleet Carriers, was the last British fleet carriers to be completed in WW2. They were also arguably the most ambitious capital ship programme in the history of the Royal Navy since the dreadnoughts. These vessels were indeed design for "mass production" and took priority in British Naval Yards over all else, civilian yards taking on the construction of lighter ASW vessels. They were not however a repeat of the prewar Illustrious or the derived Indefatigable class. There were much smaller and cheaper, but the admiralty resolved that their small but versatile air group was tailored for both escort missions and traditional fleet operations.

❮❮❮❮❮❮❮❮❮❮❮ ⚠ Note: This post is in writing. Completion expected in december 2022. ❯❯❯❯❯❯❯❯❯❯❯

Much more modest than the Essex, they were unarmoured and thus, spacious enough to carry 52 planes. It was still half that of the Essex, to which they were compared. No fewer than ten were started under the emergency program in 1942. The last was laid down in June 1943, and HMS Colossus was not commissioned before 16 December 1944. HMS Glory, Ocean, Venerable and Vengeance that followed in 1945, and the Theseus, Triumph and Warrior in 1946. The last two, HMS Perseus and Pioneer, without purpose in a context of massive budget cuts, were converted as auxiliary fleet maintenance workshops and ferry carriers.

In a sense, they were lightened, smaller versions of the Illustrious, with a better AA and a better balanced protection resulting from early wartime experience, notably in the Mediterranean. Their watertight subdivision for example was much improved, staying afloat even with many submerged compartments. Their initial permanent air group, given their hangar, was only 37 aircraft, but more were added as a deck park. Three others constituted an underclass, modified and slightly enlarged, called the Majestic class. Six were started in 1943, one cancelled, all the other completed postwar.

Apart HMS Ocean, operational in August 1945, too late to see any action, six did saw some WW2 service, yet in a new naval context, very different from 1942. The war in Europe ended at this point as well as the "battle of the atlantic" and aircraft carriers were sent straight for the Pacific. When they arraived, after their initial training, Japan had surrendered already. The four British Pacific Fleet carriers were instead used to carry back home British soldiers and rescue POWs.

The postwar years saw them used as testbeds for new aircraft and technology, testing the last generation of piston-powered aicraft as well as the first navalized jets. In fact it's aboard HMS Ocean that a de Havilland Sea Vampire became the British first jet aircraft to land, the same seeing the last landing of a biplane Swordfish. The angled flight deck concept was tested by HMS Triumph while HMS Warrior tested a rubberised flexible deck but also a skid-like landing gear while Perseus tested a new steam catapult.

Like the following Majestic class, they provided other nations their first aircraft carrier: Colossus became the French FS Arromanches (decomm. 1974), Venerable became HNLMS Karel Doorman (decomm. 1968) and then ARA Veinticinco de Mayo (decomm. 1999), Vengeance became HMAS Vengeance and Minas Gerais (decomm. 2001) and Warrior HMCS Warrior and ARA Independencia (decomm. 1971).

Improved Colossus: The Majestic class


HMAS Sydney 1949

Both the Majestic and Colossus are classed in the same 1942 design by most authors. They were launched between September 1944 and September 1945, construction was suspended at V-Day pending decisions. eventually, all would be completed post-war except HMS Leviathan, BU incomplete in 1968.

Most were sold at a very fair price on the international market in the post-1945 recession and budget cuts. This vecame a popular class during the cold war, with plenty of service and modernizations. Not the best fit for heavy and large jets many happened to operate the niùble A4 Skyhawk and STOVL like the Harrier. HMS Hercules became the Indian Vikrant in 1957, HMS Magnificent remained in RN service until 1965, Majestic became HMAS Melbourne in 1955, HMS Powerful became the RCAN HMCS Bonaventure in 1952, Terrible HMAS Sydney in 1948. They had a reduced fuel and petrol stowage (75,000 gallons) to compensate for strengthened decks and fittings to operate larger crafts.

1944 Light Fleet Carrier Design: The Centaur class


HMS Hermes was later resold to India, becoming INS Viraat and seeing service until... 2017.

The last four derived from the 1942 design were the Centaur class light fleet carriers. They were further improved on many points and larger, so much so they reach the size of the previous Illustrious class. This last class, longer and wider was still generally similar and eight hulls were laid down in 1944, the last one being HMS Bulwark (Harland & Wolff): HMS Albion, Arrogant, Bulwark, Centaur, Hermes, Monmouth, Polyphemus. However four were cancelled in October 1945, never laid down. The four remaining were seriously modified and launched 1947-53 to carry modern jets. They served for most of the cold war, Hermes seeing action in the Falklands.

Design-wise, they were larger and displaced more, had a better powerplant with larger 3-drum Admiralty boilers for 76,000 shp (instead of 40,000 shp) for 29.5 knots (vs. 25) and carried more oil, 4,000 tons (3,000) and a permanent park of 42 aicraft initially instead of 37, less with jets in the 1950s. Their armament introduced four twin 4.5 in/45 (114 mm dual purpose guns) MkIII HA and sextuple Bofors plus no less than eleven twin mounts 20 mm Oerlikon, the best of all Britsh carriers so far. Their thick deck proved able to operate 30,000 ibs aircraft while their new catapults could launched this weight at 75 knots. The lifts were larger also and the hangar taller. Overall, all these reasons made them a better fit for extensive cold war modernizaiton and service unlike the previous vessels.


design development

(to come)

Design

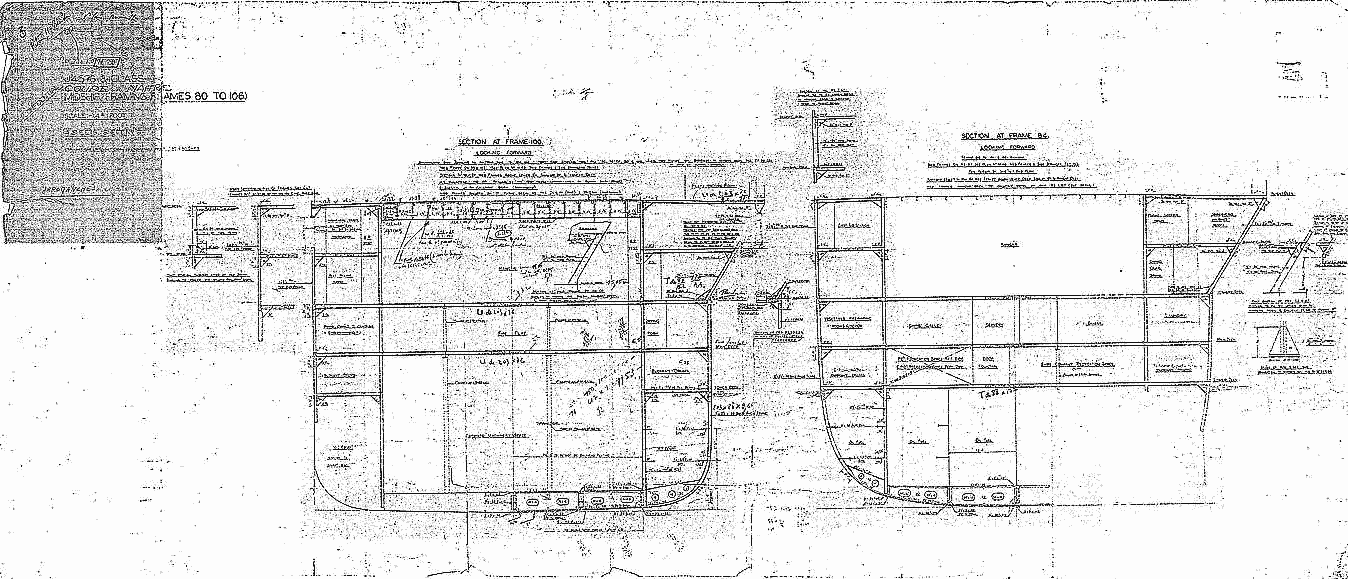

Hull construction & protection

Propulsion

Armament

Aircraft Facilities

Air Group

Modifications




INS Vikrant (ex-Hercules) in the 1980s. She was decomm. in 2014.



HMS Colossus in 1945, old author's illustration

HMS Colossus (1944)

Dimensions211,3 (overall) x 24,8 (flight deck) x 7,1 m (maximum draught)
Displacement13 500 t. standard -19 000 t. (Fully loaded)
Propulsion2 shaft, Parsons geared turbines, 4 Admiralty boilers 40 000 hp.
Speedtop speed 25 knots
Range8000 nm/18 knots
ArmorBelt, decks max 190 mm
Armament24 x 40 mm Bofors AA, 12-30 x 20 mm Oerlikon AA
Air Group37 aircraft (1945)
Crew1,300 wartime with air group personal

Scr/Read More

Links













Books

Gardiner, Robert; Chesneau, Roger, eds. Conway's all the world's fighting ships 1921-47
