The Cold War Belgian Navy
The Belgian Navy, NATO’s north sea mine warfare specialist
Through MDAP, the military side of the Marshall Plan, Belgium received no less 47 minesweepers in the 1950s-1960s, and some modernization to their single escort ship Victor Billet. From then on, the Belgian Navy definitely was assimilated to a specialized anti-mine force. The additional Algerine class vessels (8 in total from 1949 to 1959) were then used as patrol ships and ASW escorts to help the Victor Billet. Between 1956 and 1966, 7 oceanic minesweepers of the Agile class were procured, locally called Artevelde class plus 26 wooden coastal minesweepers of the Adjutant class (locally called Lier class) in 1953-55, of which eight were built locally, and finally twenty Improved “Ham” (local Herstal class) light wooden-built 1956-58 minesweepers.
In addition, the imposing minesweepers fleet demanded support vessels, for which two were specially built, Godetia in 1965 and Zinnia in 1967.
The late cold war era

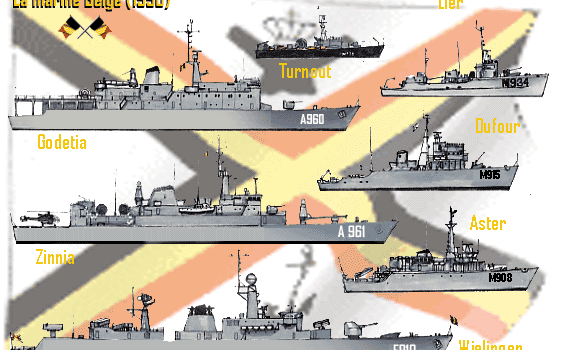

Poster of the Belgian Navy in 1990, showing the ship’s types
1970-80s reforms
The lack of proper defense for these minesweeper fleet, until then provided by the French Marine Nationale and Royal Navy led to study a frigate design in Belgium, able to better protect these minesweepers. This is how the four Wielingen class, most ambitious ships ever commissioned by the Belgian Navy, were studied and launched. Belgian yards did not possessed the capacity, skilled labour or technical means to build them, so they were delegated to Cockerill (Hoboken) and Boëlwelf yards (Temse) in the Netyherlands, but on Belgian plans and under their supervision. They were launched in 1975-76 and until 1990 gave precisely this advanced escort and projection capability the Belgians requested, and most recognisable vessels of the Belgian fleet to this day. The replacement of the considerable minesweepers fleet started in 1983 with a joint Franco-italo-Belgian project: The “Tripartite” mine hunter program, also fitting the new NATO standards requirements. Ten were built at Béliard shipyards in Ostend in 1984-1990, designated as the Aster class.
1990s Budget cuts
The Belgian Frigate Leopold I (F930). The second one is Louise-Marie (F931), also transferred in 2005 and currently in active service. They were the first two of the Doorman class, dating back 1991.
Battle order, 1990:
Balance sheet for 1990:
-4 Frigates:
Wielingen class. Fairly versatile and long-range missile launchers.
63 Minesweepers.
A considerable force, undoubtedly the largest of its type then aligned in Europe at this date. It included the ultramodern Aster class mine hunters, the old Agile class oceanic vessels of American origin, the Adjutant class coastal personnel, and the small river and coastal Herstals.
2 Support ships:
Godetia and Zinnia have been contributing their capabilities to keeping these fleets operational since the 1960s.
Studied here (summary)
-Wielingen class frigates
-Frigate Luitenant ter Zee Victor Billet
-Gerlache class minesweepers (Algerine)
-Artevelde class minesweepers (Agile)
-Lier class coastal minesweepers (Adjutant)
-Herstal class coastal/inshore/riverine minesweepers

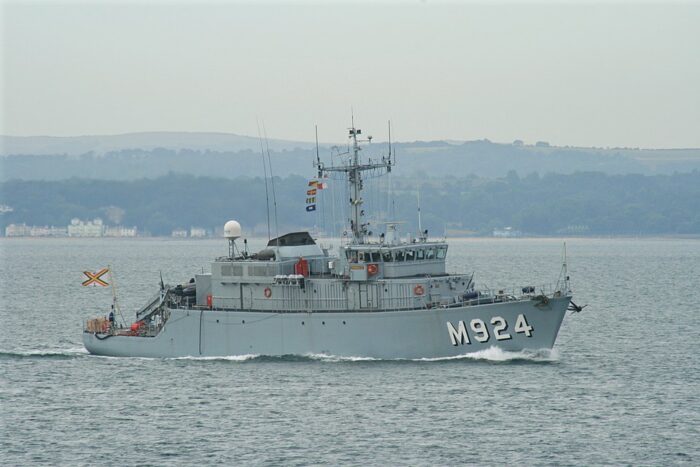

-Aster class mine hunters

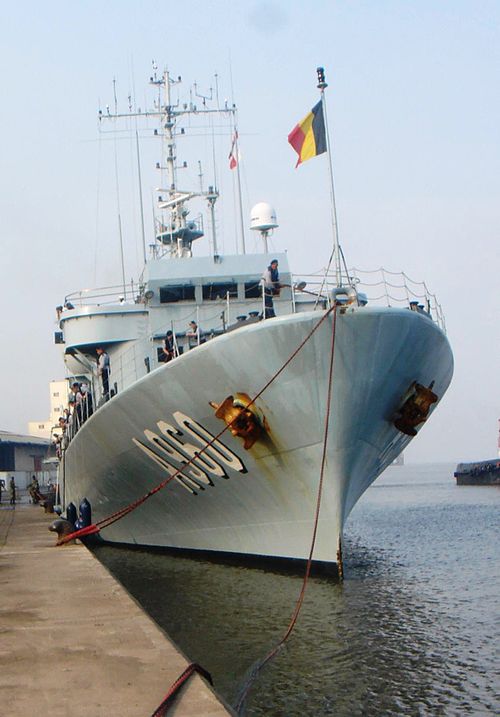

-Support vessel Godetia
-Support vessel Zinnia
Src/Links
https://www.battleships-cruisers.co.uk/belgian_navy.htm
https://en.wikipedia.org/wiki/Wielingen-class_frigate
Nomenclature of Belgian Vessels

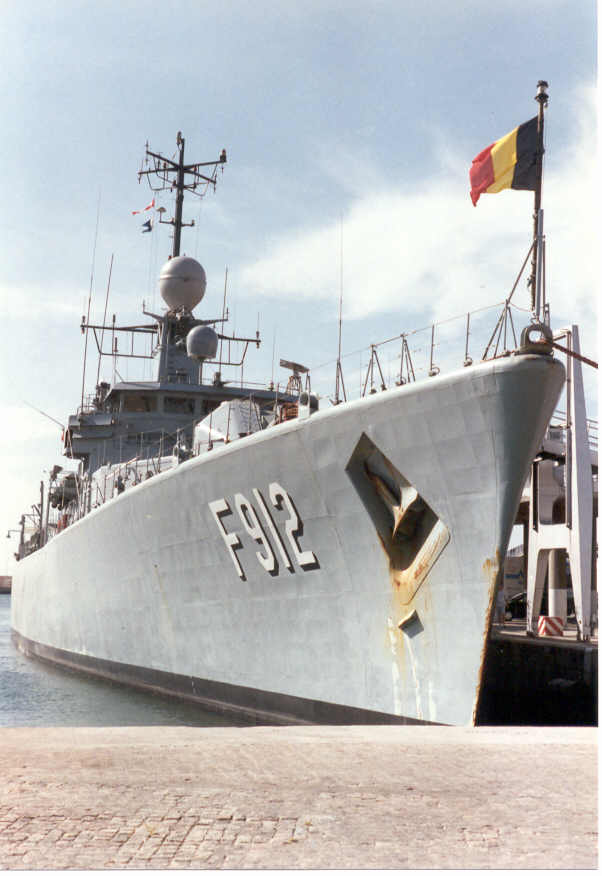

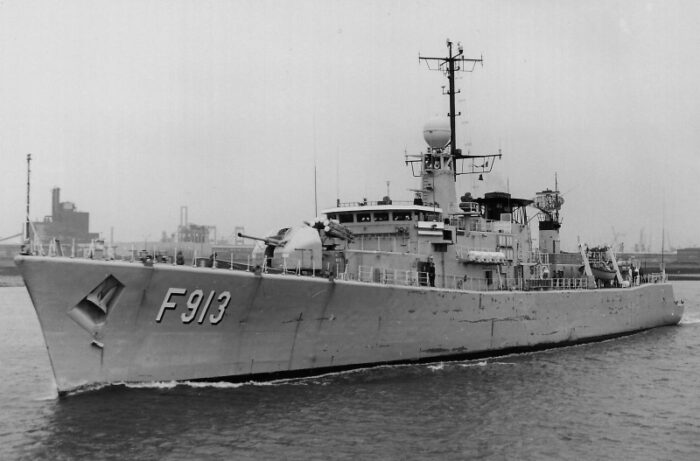

Wielingen class Frigates (1975)
Studies on these ships (E71) began in 1969. The limited capacities of the Belgian shipyards meant that they were for a moment expected to be built in Holland, but they were finally built locally, in Boëwerf and Cockerill, shipyards of Temse and Hoboken. They proceeded from a rather Batavian design, but with French equipment, and props studied for the harsh conditions of the North Sea. Their equipment was fully compatible with the latest NATO standards, in accordance with the full integration of the modest Belgian navy into the NATO defense system.
The Wielingen, Westdiep, Wandelaar and Westhinder were completed in pairs in January and November 1978. They had a central operation located between two decks, equipped with NBC. They were only gradually modernized. Currently, only the first two are active, the Westhinder having been withdrawn following a fortune at sea and never repaired. The Wandelaar has been placed in reserve.
Specifications
Displacement: 1880-2283 tons PC.
Dimensions: 106.4 x 12.3 x 5.3 m.
Propulsion: 2 propellers, 2 CODOG, 1 turb. Olympus, 28,000 hp and 25 knots max., 2 Cockerill V12 diesels giving 6000 hp and 20 knots.
Armament: 4 MM 38 Exocet, 1 MA Sea Sparrow octuple, 1 gun of 100 mm DP, 1 LR ASM Bofors 375 mm, 2 LT L5.
Electronics: DA-05, WM-25, Sonar SQS-505A radars, 2 Corvus decoy launchers.
Crew: 160
